Discussion Starter · #1 ·
COOL!
I get to start this section off!

Here are some pics of my Turbo RZR project.













VIDEO IN MOAB (CLICK TO PLAY)



·
Moderator
Joined
·
4,369 Posts
John,

You have some awesome looking machines very nice, thanks for sharing so we can all drool :D :shock: :D :D


·
Registered
Joined
·
103 Posts
John what turbo set up is that? Does it work good? Did it all fit under the bed without cutting it all up? Thanks


·
Registered Member
Joined
·
5,420 Posts
Thats a nice RZR! That video looks like fun!


·
Registered
Joined
·
10 Posts
Discussion Starter · #6 ·
leimy said:
John what turbo set up is that? Does it work good? Did it all fit under the bed without cutting it all up? Thanks
It is a TSI kit. It works well, but required considerable modification to get it right.
If you want a turbo, I would recommend the Aerocharger.
If you want a Supercharger, I would recommend a Mountain Performance kit.


·
Registered
Joined
·
67 Posts
zrated said:
leimy said:
John what turbo set up is that? Does it work good? Did it all fit under the bed without cutting it all up? Thanks
It is a TSI kit. It works well, but required considerable modification to get it right.
If you want a turbo, I would recommend the Aerocharger.
If you want a Supercharger, I would recommend a Mountain Performance kit.
Do you have any or cant you take a pic of where your running the turbo oil return line to?? Im trying to turbo my ranger right now and think i have the right spot to run it to. Thanks


·
SSW Support Staff
Joined
·
1,819 Posts
Very nice looking machine


·
Registered
Joined
·
10 Posts
Discussion Starter · #9 ·
azcity08xp said:
zrated said:
leimy said:
John what turbo set up is that? Does it work good? Did it all fit under the bed without cutting it all up? Thanks
It is a TSI kit. It works well, but required considerable modification to get it right.
If you want a turbo, I would recommend the Aerocharger.
If you want a Supercharger, I would recommend a Mountain Performance kit.
Do you have any or cant you take a pic of where your running the turbo oil return line to?? Im trying to turbo my ranger right now and think i have the right spot to run it to. Thanks
You bet!

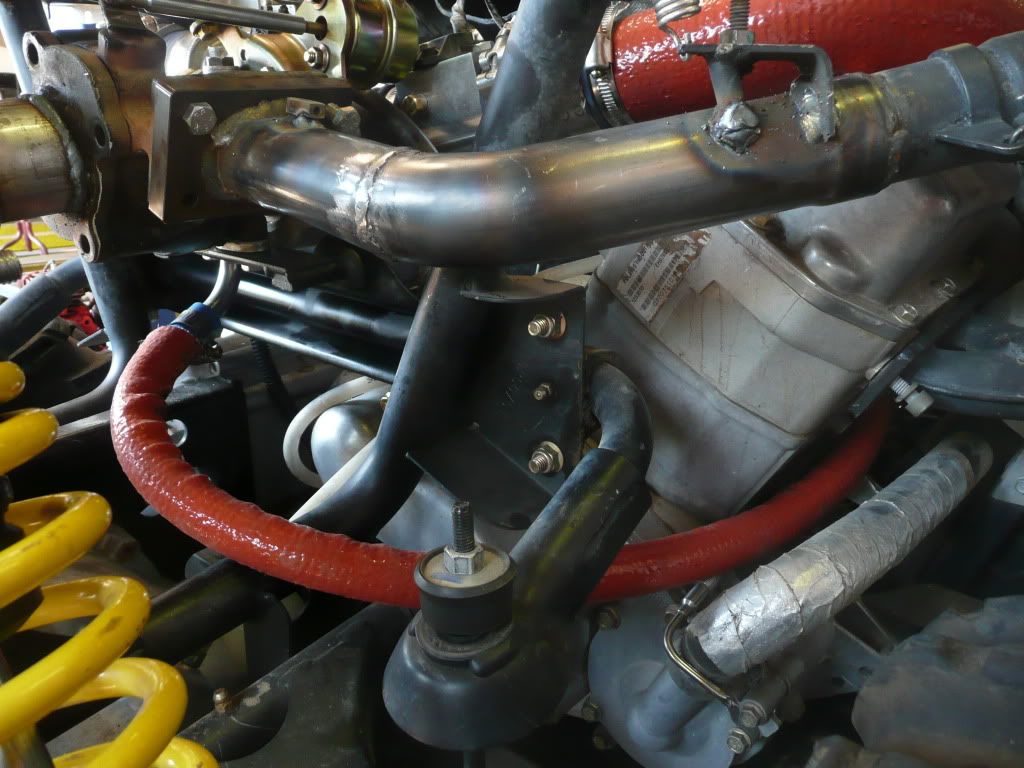

Here is a picture of my Turbo relocation project on the RZR. It shows the view that would be most like your Ranger project.

Although the picture doesn't show it, the oil return hose clamps onto a modified oil dipstick tube. You basically need to get a similar sized piece of tube and graft it into the stock dipstick tube in a "Y" configuration. Make sure you do the connection as low as possible so the oil has a good grade to flow down to the return. You don't want it to back up at all! If you get ANY backup in the return line that backs up oil into the turbo it will smoke like crazy out the tail pipe as the oil squeezes out the turbos bearings.

You also need to make sure you restrict the oil flow going TO the turbo just a little bit. If you just have a gusher of oil going IN to the turbo, it will have a much greater chance of backing up in the line when you climb steep hills. Then it will smoke as the oil squeezes past the turbos bearings.

I didn't know about restricting the flow of oil going into the turbo at the time I did this project, so I ended up using an oil return pump after I took this picture.

Hope this helps.




·
Registered
Joined
·
67 Posts
zrated said:
You bet!
Here is a picture of my Turbo relocation project on the RZR. It shows the view that would be most like your Ranger project.

Although the picture doesn't show it, the oil return hose clamps onto a modified oil dipstick tube. You basically need to get a similar sized piece of tube and graft it into the stock dipstick tube in a "Y" configuration. Make sure you do the connection as low as possible so the oil has a good grade to flow down to the return. You don't want it to back up at all! If you get ANY backup in the return line that backs up oil into the turbo it will smoke like crazy out the tail pipe as the oil squeezes out the turbos bearings.
You also need to make sure you restrict the oil flow going TO the turbo just a little bit. If you just have a gusher of oil going IN to the turbo, it will have a much greater chance of backing up in the line when you climb steep hills. Then it will smoke as the oil squeezes past the turbos bearings.
I didn't know about restricting the flow of oil going into the turbo at the time I did this project, so I ended up using an oil return pump after I took this picture.

Hope this helps.
Well i made it harder then i need to. I pulled out a freeze plug on the oil pan and tapped it for a fitting. :roll: :? Hope it works!!




·
Registered
Joined
·
10 Posts
Discussion Starter · #13 ·
Re: GPS

MBD said:
Where did you find the mount for the GPS?
http://atvutah.com/

They sell all kinds of GPS mounting hardware. Just tell them what kind of GPS you have.
